Product details
【Jinpei】GPS speed measurement, rearview mirror type, front and rear dual lenses, high quality 1080P Full HD dashcam (32GB memory card)
【This model is suitable for 5-hole rear lens extension cable】
* Upgraded GPS speed photo reminder
* Support loop recording
* Support front and rear dual lenses
* Support 24-hour parking monitoring function (need to connect to buck line)

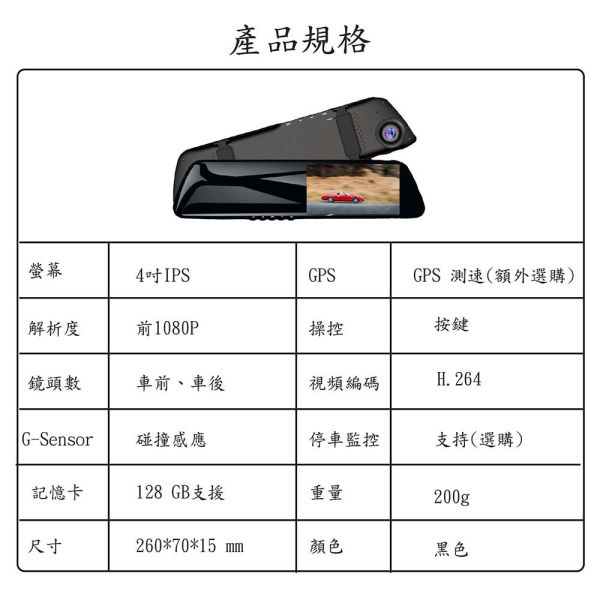

Product Specifications:
Focal length range : 1080P HD wide-angle lens 150 degree HD lens
Display : 4.0 inch IPS screen
Photo : 3 million pixels
Video Format : MJPEG (AVI)
Video : 1080P Full HD
Zoom : None
Shutter : Electronic shutter
White Balance : Auto
Connector : USB2.0/AV OUT
Battery capacity: Actual approx. 350mAh
Operating temperature : temperature 0-40 degrees Celsius / 10%-80%
Power supply : Built-in lithium battery/car charger/cigarette lighter
Maximum memory support: 64G RAM (Note: The unit does not have memory)
Inner key microphone
Support 24-hour parking monitoring function (need to connect to buck line)
Support motion detection camera function
Supports gravity sensing function
Support loop recording
Support time setting
Warranty:
The host Taiwan warranty is 12 months, except for artificial.

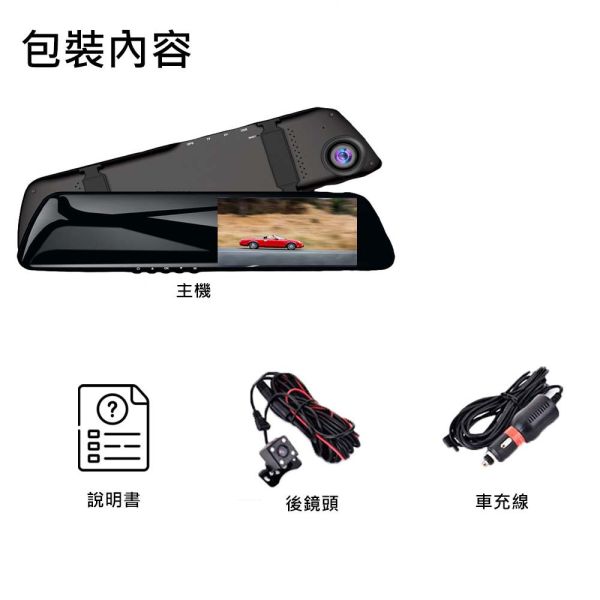

Equipped with content
1. Host
2. Rear lens
3. Car charging cable
4. Instruction Manual
Brand: Jinpei
Specifications: such as icons
Model: JD-04BS
Warranty: One year
Fittings:
1. Host
2. Rear lens
3. Car charging cable
4. Instruction Manual
Source of goods: company goods
Frequently asked questions:
1. Q: GPS module connection method
A: GPS IS NOT DIRECTLY PLUGGED INTO THE HOST, THE GPS MODULE MINI USB END NEEDS TO BE CONNECTED TO THE CHARGING CABLE, AND THE MICRO USB END IS CONNECTED TO THE DASHCAM HOST.
You can refer to the following GPS module connection methods
https://shopee.tw/product/292856476/16248738488/
2. Q: Precautions for installing reversing development
Answer:
Connect the red and black lines of the rear lens to the positive and negative poles of the reversing lamp, and if the rear lens has only one red line, connect the positive pole of the reversing lamp
*The front lens is extremely easy to install, and the rear lens is recommended to find a car dealer for assistance. *
3. Q: 32GB memory card can record time
A: 32GB memory card can record 3~4 hours. Supports up to 64GB memory cards
4. Q: I cannot read it after inserting a memory card
Answer: There is a memory card format in the dashcam, please format the memory card first.
5. . Q: Does the dashcam have a battery and can operate unplugged
Answer: There is only a built-in small-capacity battery in the dashcam, which supports about 5~10 seconds after power failure.
6. Q: The machine cannot be turned on.
A: There is a RESET reset button on the back of the machine, please insert it with a paper clip to restart the machine.
7. Q: Do I need to shut down the card when inserting or pulling out?
Answer: The product does not support hot plugging, so you must shut down the card first, otherwise there will be bad rails.
8. Q: The rear lens line is long
A: The rear lens cable is 5.5 meters long, and you can purchase a 10-meter extension of the rear lens line at an additional price.
9. Q: How to maintain 24-hour monitoring?
A: A buck cord needs to be purchased and used together.
Easy troubleshooting:
Follow the steps below to check troubleshooting.
1. Make sure that the memory card has been reformatted with a computer or in the dashcam.
2. The dashcam does not support hot swapping, so it must be installed after installing the cable or when the memory card is removed.
3. If there is still a faulty problem, you can have the RESET key on the machine, insert it with a paper clip for three seconds, and then restart the machine. Return to normal.
